发布时间：2024-05-06 09:07:03 浏览：3729

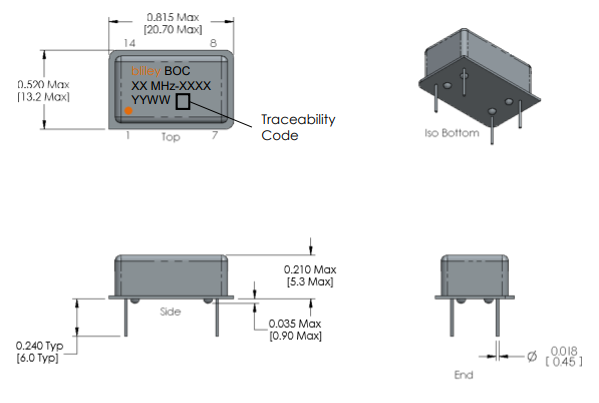

Bliley BOCT4-XXMXX-XXXB是一种CMOS或者HCMOS类型的石英时钟振荡器，可提供1至800MHz的频率范围。其稳定性可选±25ppm、±50ppm或±100ppm。温度范围可选-20°C至+70°C、-40°C至+85°C或-55°C至+125°C。供电电压可为3.3V或5V。该晶体振荡器采用14引脚DIP封装。

BOCT4-XXMXX-XXXB石英时钟振荡器Bliley

Paramefer	Condfions		Values		Unt
General		MIN	TYP	MAX
Frequency Range		1		800	MHz
Frequency Stability
	See Opfions (Max)
Vs.Temperature(1°℃ Steps)	Referenced to +25℃		±25.±50.±100		ppm
Perturbation*				±3	ppm
Aging	]st Yea			±3	ppm
Supply Voltage(Vdd)	Option D	2.97	3.3	3.63	Vdc
	Option E	4.75	5	5.25	Vdc
Curent Consumption	1MHz			25	mA
	50MHz			50	mA
	800MHz			100	mA
	Enabled-High
Dutput Control	Disabled-Low
Startup Time				5	mSec

Parameter		Conditions			Values		Unit
Output Characteristics (CMOS)			MIN		TYP	MMAX
High Output Level		Logic“1”	90%Vdd				Vdc
Low Output Level		Logic"0"				10%Vdd	Vdc
Rise/Fall Time		10%→90%				10	nSec
Duty Cycle			40		50	60	%
Load					15	50	pF

Poromeler	Conditions			Values		Unit
Phase Noise (100MHz)				MIN TYP		MAX
Phase Noise	Tested at +25℃
	10Hz			-75		dBc/Hz
	100Hz			-90		dBc/Hz
	1KHz			-110		dBc/Hz
	10kHz			-118		dBc/Hz
	100kHz			-125		dBc/Hz
	1MHz			-138		dBc/Hz
Phase Jitter (RMS)	12KHz-20MHz			1		pSec

Parameter	Conditions		Values		Unit
		MIN	TYP	MAX
Operating Temperature	Option B	-20		+70	℃
	Option C	-40		+85	℃
Storage Temperature		-55		+125	℃
Solderability	MIL-STD-202 Method 208
Solvent Resistance	MIL-STD-202 Method 215
	MIL-STD-202 Method	213
	Test Condition A
	Test Condition A
Vibration
	Test Condition B
	MIL-STD-202 Method 107
	Test Condifion A
	Test Condifion A
	MIL-STD-202 Method 112
Seal	Test Condition C &D
