Glenair的PowerLoad™高功率飞机连接器和电缆是飞机行业最新技术的配电互连，具有较高的电流承载力的冠状环触点和操作灵活性TurboFlex®布线。

Glenair PowerLoad™高功率飞机连接器和电缆972系列飞机里的发电技术现已发展壮大，以适应现代化对更高功率和更轻重量系统化的需求。商用飞机和新兴飞机eVTOL为了满足电缆的互连，系统电力需求的不断增加导致电力体系结构的重大变化(EWIS)布线中的峰值负载应力因素。

PowerLoad™

高振动、高温度互连优化了更高电压、更高海拔和更高频率。

TurboFlex®

Glenair标志性高柔性电力电缆解决方案。

冠环压接、汇流条和接线片式接触点优化了高载流和高温度性能。

Glenair PowerLoad™高功率飞机连接器和电缆需要考虑三个关键性能变量：电压、电流和频率。应用高压需要高质量的绝缘，精心设计局部放电和高质量的制造，以确保安全可靠运行。高电流的应用需要详细的峰值负载分析、精确的线规选择和高温材料。需要根据飞机发电和配电电子设备，结合综合操作和峰值电压/电流分析，设计更高频率的系统，以准确降低趋肤/邻近效应。必须严格遵守电缆部放电事件的空隙，必须严格遵守电缆与触点的端接。Glenair PowerLoad™生态系统。

Glenair连接器是全球知名的高端品牌，广泛应用于航天航空、军用、舰载、精密制造等场合。深圳市立维创展科技有限公司，授权代理销售Glenair产品，并提供技术支持。欢迎咨询。

详情了解Glenair请点击：/brand/77.html

THE POWERLOAD ECOSYSTEM

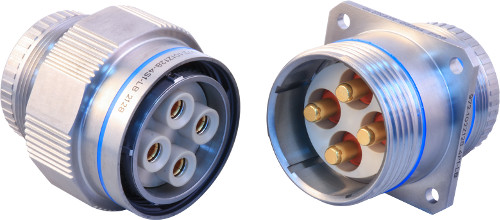

972-101 Plug with banding backshell

972-102 Wall-mount receptacle with banding backshell

972-103 Jam-nut receptacle with banding backshell

972-203 Feed-thru receptacle, jam-nut mount

850-150 and -151 Crown Ring contacts

POWERLOAD CONNECTORS

972-011 Plug with banding platform

972-012 Wall-mount receptacle with banding platform

972-013 Jam-nut receptacle with banding platform

850-323 and -324 bus bar/lug contacts

POWERLOAD CONNECTORS

390PX055 EMI/RFI Environmental Backshell, St., 45°, 90°

4470PXS1128 Compression Backshell with Band Platform

770-001S Environmental heat shrink boots

660-128 PowerLoad receptacle protective cover

660-129 PowerLoad plug protective cover

930-026 Gasket for flange-mount connectors

600-289 Connector holding tools

600-286 “Crow’s Foot” plug-to-receptacle torquing wrench

600-288 “Crow’s Foot” backshell torquing wrench

TURBOFLEX HOOKUP

961-102-2000 FEP insulation, 2000 VAC

961-106-1500 Duralectric insulation, 1500 VAC

961-106-2000 Duralectric insulation, 2000 VAC

961-108-1500 Duralectric Light insulation, 1500 VAC

961-108-2000 Duralectric Light insulation, 2000 VAC

TURBOFLEX INTERCONNECT

961-103-2000 FEP insulation, FEP outer jacket, 2000 VAC

961-104-2000 FEP insulation, Duralectric outer jacket, 2000 VAC

961-107-1500 Duralectric insulation, Duralectric outer jacket, 1500 VAC

961-107-2000 Duralectric insulation, Duralectric outer jacket, 2000 VAC

961-109-1500 Duralectric Light insulation and outer jacket, 1500 VAC

961-109-2000 Duralectric Light insulation and outer jacket, 2000 VAC
