PDI在广泛的频率范围内提供各种单片和离散晶体滤波器，并且具有任何商业或军用级规格的最高质量。PDI的晶体滤波器有各种标准包装，或根据客户的规格制造。

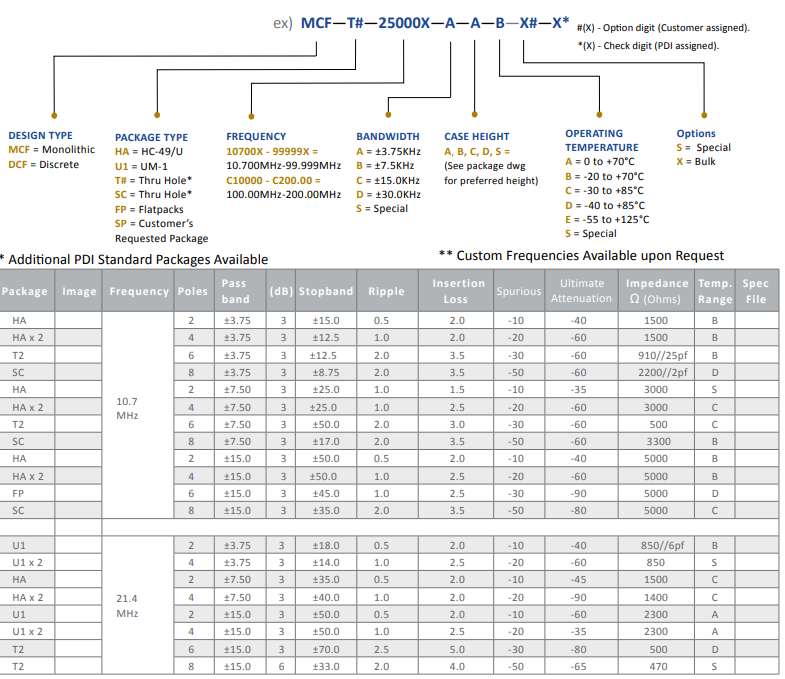

| 封装 | 频率范围 | Thru-Hole/SMD | Discrete/Monolithic | 工作温度 | Poles | Lead Free |
|---|---|---|---|---|---|---|
| FP | 10.7MHz to 200MHz | Both | Both | -55 to +125°C | 6 | Yes |
| HA | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 2 | Yes |
| HA x 2 | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 4 | Yes |
| T2 | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 4,6,8 | Yes |
| U1 | 10.7MHz to 200MHz | Both | Both | -55 to +125°C | 2 | Yes |
| U1 x 2 | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 4 | Yes |
| U1 x 3 | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 6 | Yes |
