ANDON光电传感器替代Axcel Photonics

发布时间：2023-06-01 16:59:15 浏览：2267

光电传感器选用ANDON与众不同的Senstac M接触点的最大系列稳定性可靠传感器电源插座。

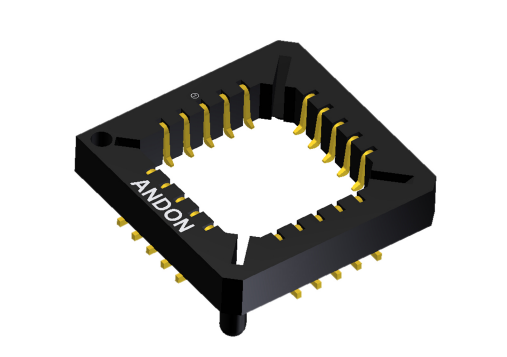

ANDON光电插座经济高效率的稳定性可靠电源插座保护、测试、集合和可以替换光电器件。PCB上的焊接电源插座安装后插入传感器，清除加工过程中的ESD，清除焊接温度所造成的受损清洗溶剂所造成的Elmate受损。防止玻璃密封性裂开，尽可能减少引线键合的冲击损害。

ANDON光电传感器设计和质量都已通过全球范围内的ISO9001认证，满足环保RoHS标准要求。主要应用于工业化生产、商业服务、国防军事、航空航天等领域。

ANDON为全球客户提供高性能插座产品，如CCD、光电、传感器、电池等项目所需的插座产品。产品广泛应用于研发设计、军用和高温环境项目。深圳市立维创展科技有限公司，授权代理销售ANDON产品，欢迎咨询。

详情了解ANDON请点击：/brand/76.html

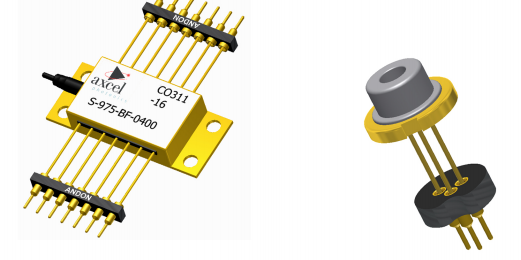

AXCEL PHOTONICS SOCKETS
Axcel Photonics Model Number	Andon Part Number Replace "XXX" with Terminal Type	Terminal Type		Pin Ø [in]	Figure Number	Page Number
Axcel Photonics Model Number	Andon Part Number Replace "XXX" with Terminal Type	Thru-Hole	Surface Mount	Pin Ø [in]	Figure Number	Page Number
B1-785-1000-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B1-785-1500-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B1-808-1500-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B1-915-1500-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B2-808-3000-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B2-915-2000-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
B2-975-3000-15A	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BF-915-0180-P50	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BF-940-0200-P50	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BF-A64-0130-PN0	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BF-A64-0150-PP0	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BF-A64-0180-P50	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BH-979-0250-PP0	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
BH-979-0300-P50	(2) 405-07-XXX-R27-L14	01S	93S	.018	1	2
HF-808-010W-25C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-808-010W-45C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-808-4500-25C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-808-7500-25C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-808-8000-13C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-808-9000-45C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-975-010W-25C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HF-975-4500-25C	C10-010-09-01-XXX-R27-L14	01S	93S	.018	2	2
HW-808-010W-450	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-808-3000-150	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-808-5000-250	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-808-8000-450	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-975-010W-450	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-975-3000-150	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-975-5000-250	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
HW-975-8000-450	C10-010-09-01-XXX-R27-L14	433E	285E	.040	3	2
M5-785-0080-S50	R100-0403-04N-XXX-R27-L14	75S	265S	.018	4	2
