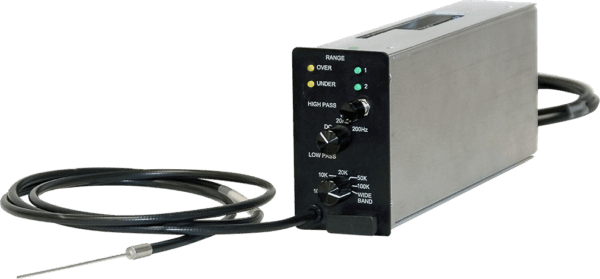

MTI Instruments光纤Fotonic插件模块

发布时间：2021-05-20 17:20:54 浏览：2610

MTIInstruments光纤Fotonic插件模块适用于精确测量动态性边缘位置、位移和振动，工作频率高达500khz。它具备适用于纳米技术运动和振动的敏锐光纤精确测量传感器.

MTIInstruments光纤Fotonic插件模块可在高达500kHz的工作频率下精确测量动态性边缘位置、位移和振动。独具特色的光纤探头设计能够满足不同的目标反射率或样式，特别适合各种各样应用领域，如超声波喇叭振动或压电材料研究.

伴随着探头到目标的距离增大，接收光纤将按比例获取越来越多的光。结果是一个非常敏感的线性输出响应。探针间隙的不断增大将成比例地降低接收的光量，因此产生敏锐的线性输出响应和较大的检测范围和隔离距离。

深圳市立维创展科技有限公司，优势直接渠道提供MTI Instruments订货服务，欢迎咨询。

详情了解MTI Instruments 请点击：/brand/70.html

或联系我们的销售工程师：0755-83642657 QQ: 2295048674


P/N	Model	Measurement Range	Stand-Off	Resolution	Type	Frequency Response
8500-1011	Plug-in Module: MTI-2020R	0.102mm (4mils) – 0.305mm (12mils)	0.127mm (5mils) – 0.508mm (20mils)	0.01µm (1µin) – 0.1µm (1µin)	Fiber Optic Module	120kHz
8500-1012	Plug-in Module: MTI-2032R	0.127mm (5mils) – 1.016mm (40mils)	0.127mm (5mils) – 0.889mm (35mils)	0.01µm (1µin) – 0.1µm (1µin)	Fiber Optic Module	120kHz
8500-1013	Plug-in Module: MTI-2047R	0.127mm (5mils) – 1.016mm (40mils)	0.127mm (5mils) – 1.118mm (44mils)	0.01µm (1µin) – 0.1µm (1µin)	Fiber Optic Module	130kHz
8500-1014	Plug-in Module: MTI-2062R	0.152mm (6mils) – 1.524mm (60mils)	0.127mm (5mils) – 1.778mm (70mils)	0.01µm (1µin) – 0.1µm (1µin)	Fiber Optic Module	150kHz
8500-1015	Plug-in Module: MTI-2062H	0.762mm (30mils) – 1.905mm (75mils)	0.762mm (30mils) – 3.81mm (150mils)	0.01µm (1µin) – 0.1µm (1µin)	Fiber Optic Module	150kHz
8500-1016	Plug-in Module: MTI-2125R	0.152mm (6mils) – 3.556mm (140mils)	0.178mm (7mils) – 3.048mm (120mils)	0.01µm (1µin) – 0.1µm (1µin)	Fiber Optic Module	190 kHz
8500-1017	Plug-in Module: MTI-2125H	1.778mm (70mils) – 4.445mm (175mils)	1.27mm (50mils) – 7.62mm (300mils)	0.01µm (1µin) – 0.1µm (1µin)	Fiber Optic Module	150kHz
8500-1018	Plug-in Module: MTI-2125CTI	0.508mm (20mils) – 3.556mm (140mils)	0.762mm (30mils) – 5.588mm (220mils)	0.01µm (1µin) – 0.1µm (1µin)	Fiber Optic Module	150kHz
8500-1019	Plug-in Module: MTI-2032RX High Resolution	0.036mm (1.4mils) – 4.445mm (175mils)	0.038mm (1.5mils)	0.01µm (1µin) – 0.1µm (1µin)	Fiber Optic Module	100kHz
8000-4237	Plug-in Module: MTI-RC200	2.54mm (100mils)	2.54mm (100mils)	0.01µm (1µin) – 0.1µm (1µin)	Fiber Optic Module	100kHz
8500-1020	Plug-in Module: MTI-2047E	0.127mm (5mils) – 0.051mm (2mils)			Fiber Optic Module	100kHz
8500-1021	Plug-in Module: MTI-2062E	0.191mm (7.5mils) – 0.061mm (2.4mils)			Fiber Optic Module	100kHz
