HOLT IC航空电子设备 MIL-STD-1553 集成终端
发布时间：2021-03-09 17:03:44 浏览：2536

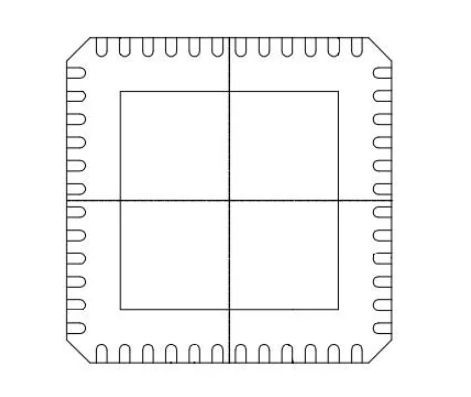

HOLT IC最新的MIL-STD-1553系列Mamba TM为客户提供了世界上最小的解决方案，可选择用于常见应用配置的设备以节省成本。HOLT IC提供BC / MT / RT，BC / RT，RT / MT和RT组合。所有设备都是片上集成收发器，封装在48针塑料QFP或6毫米x 6毫米QFN中，带有4线40MHz主机串行外围接口（SPI）。
HOLT IC是航天工业集成电路的主要供应商。20年来，HOLT IC一直在为世界各国的商业和军事客户生产制造数据总线和显示驱动芯片机器设备。从F16到350，HOLT IC主要是航空调节、导航栏、发动机管理、通讯、安全防护设备和航空娱乐系统。
深圳市立维创展科技有限公司，持续提供HOLT IC预定渠道，部分型号备有现货库存，欢迎咨询。
详情了解HOLT IC请点击：/brand/55.html
或联系我们的销售工程师：0755-83642657 QQ: 2295048674
Device | Device Type | Description |
HI-6138 | MAMBATM
BC / RT / MT | World's smallest solution. 3.3V operation. BC, MT and RT may operate concurrently. Integrated dual transceivers. 8K x 17 RAM with parity, 40 MHz Serial Peripheral host Interface (SPI). |
HI-6137 | MAMBATM
BC / RT | World's smallest solution. 3.3V operation. BC and RT may operate concurrently. Integrated dual transceivers. 8K x 17 RAM with parity, 40 MHz Serial Peripheral host Interface (SPI). |
HI-6136 | MAMBATM
RT / MT | World's smallest solution. 3.3V operation. RT and MT may operate concurrently. Integrated dual transceivers. 8K x 17 RAM with parity, 40 MHz Serial Peripheral host Interface (SPI). |
HI-6135 | MAMBATM
RT | World's smallest solution. 3.3V operation. Integrated dual transceivers. 8K x 17 RAM with parity, 40 MHz Serial Peripheral host Interface (SPI). |
HI-2130 | BC / MT / 2RT | World’s smallest MIL-STD-1553 fully integrated terminal solution. Protocol, RAM, dual transceivers and dual transformers in a single 15mm x 15mm package. |
HI-6130 | BC / MT / 2RT | 3.3V operation. BC, MT and two RTs may operate concurrently. Integrated dual transceivers. 32K x 16 RAM with optional error detection/correction, 16-bit parallel host interface. |
HI-6131 | BC / MT / 2RT | Equivalent to HI-6130 with reduced package size and SPI host interface. |
HI-62003 | BC / RT / MT | BC/RT/MT or RT/MT Modes, ECC SRAM and integrated dual transceivers. Register-level software compatible with competitor legacy devices. |
HI-62023 | Remote Terminal | Remote Terminal, ECC SRAM and integrated dual transceivers. Register-level software compatible with competitor legacy devices. |
HI-62025 | Remote Terminal | Remote Terminal, ECC SRAM and integrated dual transceivers. Register-level software compatible with competitor legacy devices. |
HI-6140 | BC / MT / RT 10Mbps | 3.3V, 10Mbit/sec, EBR-1553 operation. BC, MT or RT. 32K x 16 RAM with optional error detection/correction, 16-bit parallel host interface. |
HI-6120 | Remote Terminal | 3.3V operation. Integrated dual transceivers. 32K x 16 RAM, illegal command detection, data buffering, time tag, optional auto initialization, 16-bit parallel host interface. |
HI-6121 | Remote Terminal | Equivalent to HI-6120 with reduced package size and SPI host interface. |
HI-6110 | BC / MT / RT | 3.3V operation. Integrated dual transceivers. Single message processor. |
