WRV系列转换器采用了原始设计，具备高频脉冲宽度调制(PWM)电流模式调节器，能够支持极宽的输入电压范围。这种设计使得WRV系列特别适合于非稳压电源应用，例如电池和太阳能电池等，同时也适用于需要多种电源输入的系统。由于不需要预调节器，这种设计不仅简化了系统结构，还降低了成本。此外，WRV系列能够实现严格的输出电压调节，并提供非常低的无脉冲纹波，温度系数(TC)低于50 ppm/°C。
WRV系列提供三种输出电压范围：0至2kV、2.5kV或3kV。同时，它支持三种输入电压范围：3.6至10Vdc、6至15Vdc以及1.5至26Vdc，输出功率为1W。这些特性使得WRV系列转换器在多种电源环境中都能提供稳定可靠的电力转换解决方案。
规格参数：
| Parame ters | Specifications | ||||||||||||
| Input vol- tageVin (pins 1&2 | [5]:absolute maximum 15Vdc,recommended:from 3.6 to 10Vdc [12]:absolute maximum 28Vdc,recommended:from 6 to 15Vdc [24]:absolute maximum 28Vdc,recommended:from 13.5 to 26Vdc | ||||||||||||
| Input current (roomtem- perature | [5] | [12] | [24] | ||||||||||
| Vin | 3.6Vdc 10.0Vdc | 5.0Vdc | 10.0Vdc | 6.0Vdc | 12.0Vdc | 15.0Vdc | 13.5Vdc | 24.0Vdc | 26.0Vdc | ||||
| Inibit Mode | <40μA | <60μA | <150μA | <70μA | <200μA | <300μA | <240μA | <600μA | <650μA | ||||
| HV setting = 0V | <6mA | <5mA | <5mA | <2mA | <2.5mA | <3mA | <5mA | <6mA | <6mA | ||||
| HV setting = 2.5Vdc no load | <110mA | <90mA | <55mA | <70mA | <50mA | <40mA | <55mA | <40mA | <40mA | ||||
| HV setting= 2.5Vdc full load | <560mA | <440mA | <220mA | <350mA | <180mA | <150mA | <160mA | <95mA | <90mA | ||||
| HVoutput Vout (pin 9) | Programmable voltage:referto the Selection Guide for voltage ranges | ||||||||||||
| Polarity | Fixed positiveor negative | ||||||||||||
| HV setting (pins 3,4) | Via an external voltage source 0 to+2.5Vdc. An external potentiometer,minimum resistance 2k,canbe used assosiated with the reference voltage(pin5) The input impedance of the HV setting is 1M. Accuracy:+/-0.2%at ratedoutput voltage. | ||||||||||||
| Max.output current lout | Refer to the Selection Guide | ||||||||||||
| Load voltage regulation | ±0.01%for no load to full load | ||||||||||||
| Line voltage regulation | ±0.01 %over recommended input voltage range | ||||||||||||
| Residual ripple | 0.002% | ||||||||||||
| Temperature coefficient | <50ppm/℃ | ||||||||||||
| Output HVmonitoring (pin 6) | 0/+3,000V,output impedance=1kQ Accuracy:+/-0.2%at rated output voltage | ||||||||||||
| Output current monitoring (pin 7) | 0/+3,000V,output impedance=10 Accuracy:+/-1%after compensation (see note) | ||||||||||||
| Output reference voltage (pin5) | Refer to the Selection Guide | ||||||||||||
| Inhibition mode (pin 8) | ±0.01%for no load to full load | ||||||||||||
| Operatingcase temperature | -40℃ to+80℃ | ||||||||||||
| Storage temperature | -40℃to+80℃ | ||||||||||||
| Safeguards | ·Arc and short circuit protection ·Soft start feature:the start is guaranted with no overshoot ·Protected against reverse Vin (-30Vdc max.) ·HV | ||||||||||||

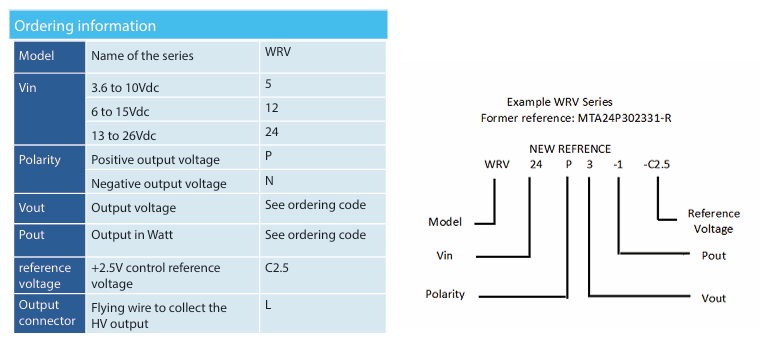

订购指南：
