FPGA现场可编程门阵列LCMXO3LF-6900C-6BG400C

发布于：2023-11-15 15:57:42

品牌名称：Lattice

重要参数：

型号：MachXO3系列

I/O: 335pins

电源电压：1.2V

封装：BGA-400pin


  • 产品详情

简化的控制 PLD 设计和调试 – 具有多个 I/O bank、广泛的信号标准、每引脚可编程性和业内最高的 I/O 逻辑比 - 无需牺牲特性和功能。在MachXO3器件系列中集成更多功能，具有多达9400个LUT和384个I/O。

安全可靠 – 使用密码保护保护您的设计免受恶意攻击，并通过最先进的软错误检测和软纠错功能减少软错误。

扩展温度灵活性 – 使用符合 AEC-Q100 标准的汽车级 XO3LF 器件实现您的下一个汽车或坚固环境设计。

特征:

· 多达 9400 个 LUT，具有多达 384 个 I/O 引脚

· 即时启动 1 ms 启动，带后台升级、无中断 I/O 重新配置和双启动错误恢复

· 提供 3.3/2.5 V 内核或低功耗 1.2 V 内核 – 包括 9400 LUT 器件的其他选项

· MachXO3LF包括可编程闪存和用户闪存(UFM)

· 采用超小(2.50 x 2.50 mm，0.4 mm间距)WLCSP封装和间距为0.50 mm和0.80 mm的BGA封装

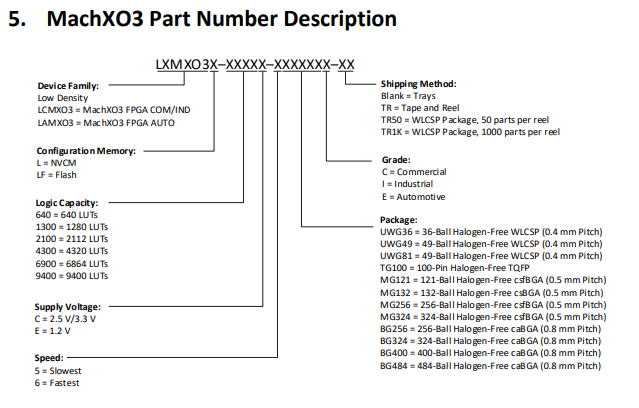

MachXO3系列选型指南：

参数MachXO3L-640/
MachXO3LF-640		MachXO3L-1300/
MachXO3LF-1300		MachXO3L-2100/
MachXO3LF-2100		MachXO3L-4300/
MachXO3LF-4300		MachXO3L-6900/
MachXO3LF-6900		MachXO3L-9400/
MachXO3LF-9400
密度 LUT64013002100430069009400

分布式 RAM

（kbits）

51016345473

EBR SRAM

（千比特）

64647492240432

UFM（仅限 kbits、

MachXO3LF）

64648096256448
VCC = 2.5 V/3.3 V-是的
是的
是的
是的
是的
VCC = 1.2 V是的
是的
是的
是的
是的
是的
温度等级1C / I / A2C / I / A2C / I / A2C / I / A2C / IC / I
锁 相 环111222
我2C222222
SPI接口111111
定时器/计数器111111
振荡器111111
MIPI D-PHY 支持是的是的是的是的是的是的
多次可编程 NVCMMachXO3LMachXO3LMachXO3LMachXO3LMachXO3LMachXO3L
可编程闪存MachXO3LFMachXO3LFMachXO3LFMachXO3LFMachXO3LFMachXO3LF

  1. C = 商业，I = 工业，A = 汽车
    2.汽车级器件仅采用MachXO3LF封装



LCMXO3LF-640E-5TG100C, LCMXO3LF-640E-6TG100C, LCMXO3LF-640E-5TG100I, LCMXO3LF-640E-6TG100I, LCMXO3LF-640E-5MG132C, LCMXO3LF-640E-6MG132C, LCMXO3LF-640E-5MG132I, LCMXO3LF-640E-6MG132I, LCMXO3LF-1300E-5TG100C, LCMXO3LF-1300E-6TG100C, LCMXO3LF-1300E-5TG100I, LCMXO3LF-1300E-6TG100I, LCMXO3LF-1300E-5MG132C, LCMXO3LF-1300E-6MG132C, LCMXO3LF-1300E-5MG132I, LCMXO3LF-1300E-6MG132I, LCMXO3LF-1300C-5TG100C, LCMXO3LF-1300C-6TG100C, LCMXO3LF-1300C-5TG100I, LCMXO3LF-1300C-6TG100I, LCMXO3LF-1300C-5MG132C, LCMXO3LF-1300C-6MG132C, LCMXO3LF-1300C-5MG132I, LCMXO3LF-1300C-6MG132I, LCMXO3LF-2100E-5TG100C, LCMXO3LF-2100E-6TG100C, LCMXO3LF-2100E-5TG100I, LCMXO3LF-2100E-6TG100I, LCMXO3LF-2100E-5MG132C, LCMXO3LF-2100E-6MG132C, LCMXO3LF-2100E-5MG132I, LCMXO3LF-2100E-6MG132I, LCMXO3LF-2100C-5TG100C, LCMXO3LF-2100C-6TG100C, LCMXO3LF-2100C-5TG100I, LCMXO3LF-2100C-6TG100I, LCMXO3LF-2100C-5MG132C, LCMXO3LF-2100C-6MG132C, LCMXO3LF-2100C-5MG132I, LCMXO3LF-2100C-6MG132I, LCMXO3LF-4300E-5MG132C, LCMXO3LF-4300E-6MG132C, LCMXO3LF-4300E-5MG132I, LCMXO3LF-4300E-6MG132I, LCMXO3LF-4300C-5MG132C, LCMXO3LF-4300C-6MG132C, LCMXO3LF-4300C-5MG132I, LCMXO3LF-4300C-6MG132I, LAMXO3LF-640E-5TG100E, LAMXO3LF-640E-5MG132E, LAMXO3LF-1300E-5TG100E, LAMXO3LF-1300C-5TG100E, LAMXO3LF-1300E-5MG132E, LAMXO3LF-1300C-5MG132E, LAMXO3LF-2100E-5TG100E, LAMXO3LF-2100C-5TG100E, LAMXO3LF-2100E-5MG132E, LAMXO3LF-2100C-5MG132E, LAMXO3LF-4300E-5MG132E, LAMXO3LF-4300C-5MG132E


Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
LCMXO3L-640E-5MG121C6401.2 V5Halogen-Free csfBGA121COM
LCMXO3L-640E-6MG121C6401.2 V6Halogen-Free csfBGA121COM
LCMXO3L-640E-5MG1216401.2 V5Halogen-Free csfBGA121IND
LCMXO3L-640E-6MG1216401.2V6Halogen-Free csfBGA121IND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
LCMXO3L-1300E-5UWG36CTR13001.2 V5Halogen-Free WLCSP36COM
LCMXO3L-1300E-5UWG36CTR5013001.2V5Halogen-Free WLCSP36COM
LCMXO3L-1300E-5UWG36CTR1K13001.2V5Halogen-Free WLCSP36COM
LCMXO3L-1300E-5UWG36ITR13001.2V5Halogen-Free WLCSP36IND
LCMXO3L-1300E-5UWG36ITR5013001.2V5Halogen-Free WLCSP36IND
LCMXO3L-1300E-5UWG36ITR1K13001.2V5Halogen-Free WLCSP36IND
LCMXO3L-1300E-5MG121C13001.2V5Halogen-Free csfBGA121COM
LCMXO3L-1300E-6MG121C13001.2V6Halogen-Free csfBGA121COM
LCMXO3L-1300E-5MG121113001.2V5Halogen-Free csfBGA121IND
LCMXO3L-1300E-6MG121113001.2V6Halogen-Free csfBGA121IND
LCMXO3L-1300E-5MG256C13001.2V5Halogen-Free csfBGA256COM
LCMXO3L-1300E-6MG256C13001.2V6Halogen-Free csfBGA256COM
LCMXO3L-1300E-5MG256I13001.2V5Halogen-Free csfBGA256IND
LCMXO3L-1300E-6MG256I13001.2V6Halogen-Free csfBGA256IND
LCMXO3L-1300C-5BG256C13002.5V/3.3V5Halogen-Free caBGA256COM
LCMXO3L-1300C-6BG256C13002.5 V/3.3 V6Halogen-Free caBGA256COM
LCMXO3L-1300C-5BG25613002.5 V/3.3 V5Halogen-Free caBGA256IND
LCMXO3L-1300C-6BG25613002.5 V/3.3 V6Halogen-Free caBGA256IND

Part NumberLUTSSupply VoltageSpeedPackageLeadsTemp
LCMXO3L-2100E-5UWG49CTR21001.2V5Halogen-Free WLCSP49COM
LCMXO3L-2100E-5UWG49CTR5021001.2 V5Halogen-Free WLCSP49COM
LCMXO3L-2100E-5UWG49CTR1K21001.2V5Halogen-Free WLCSP49COM
LCMXO3L-2100E-5UWG49ITR21001.2 V5Halogen-Free WLCSP49IND
CMXO3L-2100E-5UWG49ITR5021001.2V5Halogen-Free WLCSP49ND
CMXO3L-2100E-5UWG49ITR1K21001.2V5Halogen-Free WLCSP49IND
LCMXO3L-2100E-5MG121C21001.2 V5Halogen-Free csfBGA121COM
CMXO3L-2100E-6MG121C21001.2 V6Halogen-Free csfBGA121COM

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
LCMXO3L-2100E-5MG121121001.2V5Halogen-Free csfBGA121ND
LCMXO3L-2100E-6MG121121001.2V6Halogen-Free csfBGA121ND
LCMXO3L-2100E-5MG256C21001.2V5Halogen-Free csfBGA256COM
LCMXO3L-2100E-6MG256C21001.2V6Halogen-Free csfBGA256COM
LCMXO3L-2100E-5MG256I21001.2 V5Halogen-Free csfBGA256ND
LCMXO3L-2100E-6MG256I21001.2V6Halogen-Free csfBGA256ND
LCMXO3L-2100E-5MG324C21001.2V5Halogen-Free csfBGA324COM
LCMXO3L-2100E-6MG324C21001.2V6Halogen-Free csfBGA324COM
LCMXO3L-2100E-5MG324I21001.2V5Halogen-Free csfBGA324ND
LCMXO3L-2100E-6MG324I21001.2 V6Halogen-Free csfBGA324ND
LCMXO3L-2100C-5BG256C21002.5 V/3.3 V5Halogen-Free caBGA256COM
LCMXO3L-2100C-6BG256C21002.5V/3.3 V6Halogen-Free caBGA256COM
LCMXO3L-2100C-5BG256I21002.5V/3.3 V5Halogen-Free caBGA256ND
LCMXO3L-2100C-6BG256I21002.5V/3.3V6Halogen-Free caBGA256ND
LCMXO3L-2100C-5BG324C21002.5V/3.3V5Halogen-Free caBGA324COM
LCMXO3L-2100C-6BG324C21002.5 V/3.3 V6Halogen-Free caBGA324COM
LCMXO3L-2100C-5BG32421002.5V/3.3V5Halogen-Free caBGA324ND
LCMXO3L-2100C-6BG324121002.5V/3.3 V6Halogen-Free caBGA324ND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
LCMXO3L-4300E-SUWG81CTR43001.2V5Halogen-Free WLCSP81COM
LCMXO3L-4300E-SUWG81CTR5043001.2 V5Halogen-Free WLCSP81COM
LCMXO3L-4300E-SUWG81CTR1K43001.2V5Halogen-Free WLCSP81COM
LCMXO3L-4300E-5UWG81ITR43001.2V5Halogen-Free WLCSP81ND
LCMXO3L-4300E-5UWG81ITR5043001.2V5Halogen-Free WLCSP81ND
LCMXO3L-4300E-SUWG81ITR1K43001.2V5Halogen-Free WLCSP81ND
LCMXO3L-4300E-5MG121C43001.2 V5Halogen-Free csfBGA121COM
LCMXO3L-4300E-6MG121C43001.2V6Halogen-Free csfBGA121COM
LCMXO3L-4300E-5MG121I43001.2V5Halogen-Free csfBGA121IND
LCMXO3L-4300E-6MG121143001.2V6Halogen-Free csfBGA121ND
LCMXO3L-4300E-5MG256C43001.2V5Halogen-Free csfBGA256COM
LCMXO3L-4300E-6MG256C43001.2V6Halogen-Free csfBGA256COM
LCMXO3L-4300E-5MG256I43001.2 V5Halogen-Free csfBGA256ND
LCMXO3L-4300E-6MG256I43001.2V6Halogen-Free csfBGA256IND
LCMXO3L-4300E-5MG324C43001.2V5Halogen-Free csfBGA324COM
LCMXO3L-4300E-6MG324C43001.2V6Halogen-Free csfBGA324COM
LCMXO3L-4300E-5MG324I43001.2V5Halogen-Free csfBGA324ND
LCMXO3L-4300E-6MG324I43001.2V6Halogen-Free csfBGA324ND
LCMXO3L-4300C-5BG256C43002.5V/3.3V5Halogen-Free caBGA256COM
LCMXO3L-4300C-6BG256C43002.5V/3.3V6Halogen-Free caBGA256COM
LCMXO3L-4300C-5BG256I43002.5V/3.3 V5Halogen-Free caBGA256ND
LCMXO3L-4300C-6BG256I43002.5V/3.3 V6Halogen-Free caBGA256ND
LCMXO3L-4300C-5BG324C43002.5V/3.3 V5Halogen-Free caBGA324COM
LCMXO3L-4300C-6BG324C43002.5V/3.3V6Halogen-Free caBGA324COM
LCMXO3L-4300C-5BG32443002.5V/3.3V5Halogen-Free caBGA324ND
LCMXO3L-4300C-6BG32443002.5V/3.3V6Halogen-Free caBGA324ND
LCMXO3L-4300C-5BG400C43002.5V/3.3 V5Halogen-Free caBGA400COM
LCMXO3L-4300C-6BG400C43002.5 V/3.3V6Halogen-Free caBGA400COM

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
LCMXO3L-4300C-5BG400I43002.5V/3.3V5Halogen-Free caBGA400IND
LCMXO3L-4300C-6BG40043002.5V/3.3 V6Halogen-Free caBGA400IND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
CMXO3L-6900E-5MG256C69001.2 V5Halogen-Free csfBGA256COM
CMXO3L-6900E-6MG256C69001.2V6Halogen-Free csfBGA256COM
LCMXO3L-6900E-5MG256169001.2V5Halogen-Free csfBGA256IND
LCMXO3L-6900E-6MG256169001.2V6Halogen-Free csfBGA256IND
CMXO3L-6900E-5MG324C69001.2V5Halogen-Free csfBGA324COM
CMXO3L-6900E-6MG324C69001.2 V6Halogen-Free csfBGA324COM
LCMXO3L-6900E-5MG324169001.2 V5Halogen-Free csfBGA324IND
LCMXO3L-6900E-6MG324I69001.2V6Halogen-Free csfBGA324IND
CMXO3L-6900C-5BG256C69002.5V/3.3 V5Halogen-Free caBGA256COM
CMXO3L-6900C-6BG256C69002.5V/3.3 V6Halogen-Free caBGA256COM
LCMXO3L-6900C-5BG256I69002.5V/3.3 V5Halogen-Free caBGA256IND
LCMXO3L-6900C-6BG256I6902.5V/3.3V6Halogen-Free caBGA256IND
CMXO3L-6900C-5BG324C69002.5V/3.3V5Halogen-Free caBGA324COM
CMXO3L-6900C-6BG324C69002.5V/3.3 V6Halogen-Free caBGA324COM
LCMXO3L-6900C-5BG324I6902.5V/3.3 V5Halogen-Free caBGA324IND
LCMXO3L-6900C-6BG324I69002.5V/3.3 V6Halogen-Free caBGA324IND
CMXO3L-6900C-5BG400C69002.5V/3.3V5Halogen-Free caBGA400COM
CMXO3L-6900C-6BG400C69002.5V/3.3 V6Halogen-Free caBGA400COM
LCMXO3L-6900C-5BG400I69002.5V/3.3V5Halogen-Free caBGA400IND
LCMXO3L-6900C-6BG40069002.5V/3.3 V6Halogen-Free caBGA400IND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
CMXO3L-9400E-5MG256C94001.2V5Halogen-Free csfBGA256COM
CMXO3L-9400E-6MG256C94001.2 V6Halogen-Free csfBGA256COM
LCMXO3L-9400E-5MG256194001.2 V5Halogen-Free csfBGA256IND
LCMXO3L-9400E-6MG256194001.2V6Halogen-Free csfBGA256IND
LCMXO3L-9400E-5BG256C94001.2V5Halogen-Free caBGA256COM
CMXO3L-9400E-6BG256C94001.2V6Halogen-Free caBGA256COM
LCMXO3L-9400E-5BG256I94001.2V5Halogen-Free caBGA256IND
LCMXO3L-9400E-68G256I94001.2V6Halogen-Free caBGA256IND
CMXO3L-9400E-5BG400C94001.2V5Halogen-Free caBGA400COM
CMXO3L-9400E-6BG400C94001.2 V6Halogen-Free caBGA400COM
CMXO3L-9400E-5BG40094001.2V5Halogen-Free caBGA400IND
CMXO3L-9400E-6BG40094001.2V6Halogen-Free caBGA400IND
CMXO3L-9400E-5BG484C94001.2 V5Halogen-Free caBGA484COM
CMXO3L-9400E-6BG484C94001.2 V6Halogen-Free caBGA484COM
LCMXO3L-9400E-5BG484I94001.2V5Halogen-Free caBGA484IND
LCMXO3L-9400E-6BG484I94001.2 V6Halogen-Free caBGA484IND
LCMXO3L-9400C-5BG256C94002.5V/3.3V5Halo en-Free caBGA256COM
CMXO3L-9400C-6BG256C9402.5V/3.3V6Halogen-Free caBGA256COM
LCMXO3L-9400C-5BG256I94002.5V/3.3 V5Halogen-Free caBGA256IND
LCMXO3L-9400C-6BG25694002.5V/3.3V6Halogen-Free caBGA256IND
CMXO3L-9400C-5BG400C94002.5V/3.3V5Halogen-Free caBGA400COM
CMXO3L-9400C-6BG400C94002.5V/3.3 V6Halogen-Free caBGA400COM

Part NumberLUTsSupply VoltageSpeedPackareLeadsTemp.
LCMXO3L-9400C-5BG40094002.5V/3.3V5Halogen-Free caBGA400IND
LCMXO3L-9400C-6BG40094002.5V/3.3V6Halogen-Free caBGA400ND
LCMXO3L-9400C-5BG484C04002.5V/3.3V5Halogen-Free caBGA484COM
LCMXO3L-9400C-6BG484C94002.5V/3.3V6Halogen-Free caBGA484COM
CMXO3L-9400C-5BG484I94002.5V/3.3V5Halogen-Free caBGA484IND
LCMXO3L-9400C-6BG484I94002.5V/3.3 V6Halogen-Free caBGA484IND

Part Number LUTsSupply VoltageSpeedPackageLeadsTemp
LCMXO3LF-640E-5TG100C 6401.2V5Halogen-Free TQFP100COM
LCMXO3LF-640E-6TG100C 6401.2V6Halogen-Free TQFP100COM
LCMXO3LF-640E-5TG100I 6401.2V5Halogen-Free TQFP100IND
LCMXO3LF-640E-6TG100I 6401.2V6Halogen-Free TQFP100IND
LCMXO3LF-640E-5MG121C 6401.2V5Halogen-Free csfBGA121COM
LCMXO3LF-640E-6MG121C 6401.2V6Halogen-Free csfBGA121COM
CMXO3LF-640E-5MG1211 6401.2V5Halogen-Free csfBGA121IND
LCMXO3LF-640E-6MG1211 6401.2V6Halogen-Free csfBGA121IND
LCMXO3LF-640E-5MG132C 6401.2V5Halogen-Free csBGA132COM
LCMXO3LF-640E-6MG132C 6401.2V6Halogen-Free csBGA132COM
LCMXO3LF-640E-5MG1321 6401.2V5Halogen-Free csBGA132ND
LCMXO3LF-640E-6MG1321 6401.2V6Halogen-Free csBGA132IND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp.
LCMXO3LF-1300E-5UWG36CTR13001.2V5Halogen-Free WLCSP36COM
LCMXO3LF-1300E-5UWG36CTR5013001.2V5Halogen-Free WLCSP36COM
LCMXO3LF-1300E-5UWG36CTR1K13001.2V5Halogen-Free WLCSP36COM
LCMXO3LF-1300E-5UWG36ITR13001.2V5Halogen-Free WLCSP36IND
LCMXO3LF-1300E-5UWG36ITR5013001.2V5Halogen-Free WLCSP36IND
LCMXO3LF-1300E-5UWG36ITR1K13001.2V5Halogen-Free WLCSP36IND
LCMXO3LF-1300E-5TG100C13001.2V5Halogen-Free TQFP100COM
LCMXO3LF-1300E-6TG100C13001.2V6Halogen-Free TQFP100COM
LCMXO3LF-1300E-5TG100I13001.2 V5Halogen-Free TQFP100IND
LCMXO3LF-1300E-6TG100I13001.2V6Halogen-Free TQFP100IND
LCMXO3LF-1300E-5MG121C13001.2V5Halogen-Free csfBGA121COM
LCMXO3LF-1300E-6MG121C13001.2 V6Halogen-Free csfBGA121COM
LCMXO3LF-1300E-5MG121113001.2V5Halogen-Free csfBGA121IND
LCMXO3LF-1300E-6MG121113001.2V6Halogen-Free csfBGA121IND
LCMXO3LF-1300E-5MG132C13001.2V5Halogen-Free csBGA132COM
LCMXO3LF-1300E-6MG132C13001.2 V6Halogen-Free csBGA132COM
LCMXO3LF-1300E-5MG132I13001.2V5Halogen-Free csBGA132IND
LCMXO3LF-1300E-6MG132I13001.2 V6Halogen-Free csBGA132IND
LCMXO3LF-1300E-5MG256C13001.2V5Halogen-Free csfBGA256COM
LCMXO3LF-1300E-6MG256C13001.2V6Halogen-Free csfBGA256COM
LCMXO3LF-1300E-5MG256I13001.2V5Halogen-Free csfBGA256IND
LCMXO3LF-1300E-6MG256I13001.2V6Halogen-Free csfBGA256IND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
LCMXO3LF-1300C-5TG100C13002.5V/3.3V5Halogen-Free TQFP100COM
LCMXO3LF-1300C-6TG100C13002.5V/3.3 V6Halogen-Free TQFP100COM
LCMXO3LF-1300C-5TG100I13002.5V/3.3 V5Halogen-Free TQFP100IND
CMXO3LF-1300C-6TG100I13002.5V/3.3 V6Halogen-Free TQFP100IND
CMXO3LF-1300C-5MG132C13002.5V/3.3 V5Halogen-Free csBGA132COM
CMXO3LF-1300C-6MG132C13002.5V/3.3 V6Halogen-Free csBGA132COM
LCMXO3LF-1300C-5MG132I13002.5V/3.3 V5Halogen-Free csBGA132IND
LCMXO3LF-1300C-6MG13213002.5V/3.3 V6Halogen-Free csBGA132IND
CMXO3LF-1300C-5BG256C13002.5V/3.3 V5Halogen-Free caBGA256CO
CMXO3LF-1300C-6BG256C13002.5V/3.3 V6Halogen-Free caBGA256COM
LCMXO3LF-1300C-5BG25613002.5V/3.3V5Halogen-Free caBGA256IND
LCMXO3LF-1300C-6BG256I13002.5V/3.3V6Halogen-Free caBGA256IND

Part NumberLUTsSupply VoltageSpeedPackagLeadsTemp
CMXO3LF-2100E-5UWG49CTR21001.2 V5Halogen-Free WLCSP49COM
CMXO3LF-2100E-5UWG49CTR5021001.2V5Halogen-Free WLCSP49COM
CMXO3LF-2100E-5UWG49CTR1K21001.2 V5Halogen-Free WLCSP49COM
CMXO3LF-2100E-5UWG49ITR21001.2V5Halogen-Free WLCSP49IND
CMXO3LF-2100E-5UWG49ITR5021001.2 V5Halogen-Free WLCSP49IND
CMXO3LF-2100E-5UWG49ITR1K21001.2V5Halogen-Free WLCSP49IND
LCMXO3LF-2100E-5TG100C21001.2 V5Halogen-Free TQFP100COM
LCMXO3LF-2100E-6TG100C21001.2V6Halogen-Free TQFP100COM
LCMXO3LF-2100E-5TG100I21001.2V5Halogen-Free TQFP100IND
LCMXO3LF-2100E-6TG100I21001.2V6Halogen-Free TQFP100IND
LCMXO3LF-2100E-5MG121C21001.2V5Halogen-Free csfBGA121COM
CMXO3LF-2100E-6MG121C21001.2 V6Halogen-Free csfBGA121COM
LCMXO3LF-2100E-5MG12112101.2 V5Halogen-Free csfBGA121IND
LCMXO3LF-2100E-6MG121I21001.2V6Halogen-Free csfBGA121IND
LCMXO3LF-2100E-5MG132C21001.2 V5Halogen-Free csBGA132COM
CMXO3LF-2100E-6MG132C21001.2V6Halogen-Free csBGA132COM
LCMXO3LF-2100E-5MG132121001.2V5Halogen-Free csBGA132IND
LCMXO3LF-2100E-6MG132121001.2 V6Halogen-Free csBGA132IND
CMXO3LF-2100E-5MG256C21001.2 V5Halogen-Free csfBGA256COM
CMXO3LF-2100E-6MG256C21001.2V6Halogen-Free csfBGA256COM
LCMXO3LF-2100E-5MG256I21001.2V5Halogen-Free csfBGA256IND
LCMXO3LF-2100E-6MG25621001.2V6Halogen-Free csfBGA256IND
CMXO3LF-2100E-5MG324C21001.2 V5Halogen-Free csfBGA324COM
CMXO3LF-2100E-6MG324C21001.2 V6Halogen-Free csfBGA324COM
LCMXO3LF-2100E-5MG324I21001.2 V5Halogen-Free csfBGA324IND
LCMXO3LF-2100E-6MG324I21001.2V6Halogen-Free csfBGA324IND
LCMXO3LF-2100C-5TG100C21002.5V/3.3 V5Halogen-Free TOFP100COM
LCMXO3LF-2100C-6TG100C21002.5V/3.3V6Halogen-Free TQFP100COM
CMXO3LF-2100C-5TG100I21002.5V/3.3V5Halogen-Free TQFP100IND
LCMXO3LF-2100C-6TG100I21002.5V/3.3 V6Halogen-Free TQFP100IND
CMXO3LF-2100C-5MG132C21002.5V/3.3 V5Halogen-Free csBGA100COM
CMXO3LF-2100C-6MG132C21002.5V/3.3V6Halogen-Free csBGA100COM
LCMXO3LF-2100C-5MG132121002.5V/3.3 V5Halogen-Free csBGA100IND
LCMXO3LF-2100C-6MG132I21002.5V/3.3V6Halogen-Free csBGA100IND

Part NumberLUTsSupply Voltage5pgedPackageLeadsTemp.
LCMXO3LF-2100C-5BG256C21002.5V/3.3V5Halogen-Free caBGA256COM
LCMXO3LF-2100C-6BG256C21002.5V/3.3V6Halogen-Free caBGA256COM
LCMXO3LF-2100C-5BG256I21002.5V/3.3V5Halogen-Free caBGA256ND
LCMXO3LF-2100C-6BG256I21002.5V/3.3 V6Halogen-Free caBGA256ND
LCMXO3LF-2100C-5BG324C21002.5V/3.3V5Halogen-Free caBGA324COM
CMXO3LF-2100C-6BG324C21002.5V/3.3V6Halogen-Free caBGA324COM
LCMXO3LF-2100C-5BG324121002.5V/3.3V5Halogen-Free caBGA324ND
LCMXO3LF-2100C-6BG324121002.5V/3.3V6Halogen-Free caBGA324IND

Part NumberLUTsSupply VoltageSpeegPackageLeadsTemp.
CMXO3LF-4300E-5UWG81CTR43001.2V5Halogen-Free WLCSP81COM
LCMXO3LF-4300E-5UWG81CTR5043001.2 V5Halogen-Free WLCSP81COM
LCMXO3LF-4300E-5UWG81CTR1K43001.2 V5Halogen-Free WLCSP81COM
LCMXO3LF-4300E-5UWG81ITR43001.2 V5Halogen-Free WLCSP81IND
LCMXO3LF-4300E-5UWG81ITR5043001.2V5Halogen-Free WLCSP81ND
LCMXO3LF-4300E-5UWG81ITR1K43001.2 V5Halogen-Free WLCSP81ND
LCMXO3LF-4300E-5MG121C43001.2 V5Halogen-Free csfBGA121COM
LCMXO3LF-4300E-6MG121C43001.2 V6Halogen-Free csfBGA121COM
CMXO3LF-4300E-5MG121I43001.2 V5Halogen-Free csfBGA121ND
LCMXO3LF-4300E-6MG121143001.2V6Halogen-Free csfBGA121IND
LCMXO3LF-4300E-5MG132C43001.2 V5Halogen-Free csBGA132COM
LCMXO3LF-4300E-6MG132C43001.2 V6Halogen-Free csBGA132COM
LCMXO3LF-4300E-5MG132I43001.2 V5Halogen-Free csBGA132ND
LCMXO3LF-4300E-6MG132I43001.2 V6Halogen-Free csBGA132ND
CMXO3LF-4300E-5MG256C43001.2 V5Halogen-Free csfBGA256COM
LCMXO3LF-4300E-6MG256C43001.2V6Halogen-Free csfBGA256COM
LCMXO3LF-4300E-5MG256I43001.2 V5Halogen-Free csfBGA256ND
LCMXO3LF-4300E-6MG256I43001.2 V6Halogen-Free csfBGA256ND
LCMXO3LF-4300E-5MG324C43001.2 V5Halogen-Free csfBGA324COM
LCMXO3LF-4300E-6MG324C43001.2 V6Halogen-Free csfBGA324COM
LCMXO3LF-4300E-5MG324I43001.2 V5Halogen-Free csfBGA324ND
LCMXO3LF-4300E-6MG324I43001.2V6Halogen-Free csfBGA324IND
LCMXO3LF-4300C-5MG132C43002.5V/3.3V5Halogen-Free csBGA132COM
LCMXO3LF-4300C-6MG132C43002.5V/3.3V6Halogen-Free csBGA132COM
LCMXO3LF-4300C-5MG132143002.5V/3.3V5Halogen-Free csBGA132ND
LCMXO3LF-4300C-6MG132143002.5V/3.3 V6Halogen-Free csBGA132ND
LCMXO3LF-4300C-5BG256C43002.5V/3.3V5Halogen-Free caBGA256COM
LCMXO3LF-4300C-6BG256C43002.5V/3.3V6Halogen-Free caBGA256COM
LCMXO3LF-4300C-5BG256I43002.5V/3.3V5Halogen-Free caBGA256IND
LCMXO3LF-4300C-6BG256I43002.5V/3.3V6Halogen-Free caBGA256ND
LCMXO3LF-4300C-5BG324C43002.5V/3.3V5Halogen-Free caBGA324COM
LCMXO3LF-4300C-6BG324C43002.5V/3.3 V6Halogen-Free caBGA324COM
LCMXO3LF-4300C-5BG324143002.5V/3.3V5Halogen-Free caBGA324ND
CMXO3LF-4300C-68G324I43002.5V/3.3V6Halogen-Free caBGA324IND
LCMXO3LF-4300C-5BG400C43002.5V/3.3V5Halogen-Free caBGA400COM
LCMXO3LF-4300C-6BG400C43002.5V/3.3V6Halogen-Free caBGA400COM
LCMXO3LF-4300C-5BG400I43002.5V/3.3V5Halogen-Free caBGA400IND
LCMXO3LF-4300C-6BG400I43002.5V/3.3 V6Halogen-Free caBGA400ND

Part NumberLUTsSupply VoltageSpeedPackageLeadsTemp
CMXO3LF-6900E-5MG256C6901.2 V5Halogen-Free csfBGA256COM
CMXO3LF-6900E-6MG256C69001.2 V6Halogen-Free csfBGA256COM
LCMXO3LF-6900E-5MG256I69001.2V5Halogen-Free csfBGA256IND
LCMXO3LF-6900E-6MG256I69001.2 V6Halogen-Free csfBGA256IND
CMXO3LF-6900E-5MG324C69001.2 V5Halogen-Free csfBGA324COM
CMXO3LF-6900E-6MG324C69001.2 V6Halogen-Free csfBGA324COM
LCMXO3LF-6900E-5MG324I69001.2 V5Halogen-Free csfBGA324IND
LCMXO3LF-6900E-6MG324I6901.2V6Halogen-Free csfBGA324IND
CMXO3LF-6900C-5BG256C6902.5V/3.3 V5Halogen-Free caBGA256COM
CMXO3LF-6900C-6BG256C69002.5V/3.3V6Halogen-Free caBGA256COM
LCMXO3LF-6900C-5BG256I6902.5V/3.3 V5Halogen-Free caBGA256IND
LCMXO3LF-6900C-6BG25669002.5V/3.3V6Halogen-Free caBGA256IND
CMXO3LF-6900C-5BG324C69002.5V/3.3 V5Halogen-Free caBGA324COM
CMXO3LF-6900C-6BG324C6902.5V/3.3 V6Halogen-Free caBGA324COM
LCMXO3LF-6900C-58G32469002.5V/3.3V5Halogen-Free caBGA324IND
CMXO3LF-6900C-6BG324I6902.5V/3.3 V6Halogen-Free caBGA324IND
LCMXO3LF-6900C-5BG400C6902.5V/3.3V5Halogen-Free caBGA400COM
LCMXO3LF-6900C-6BG400C6902.5V/3.3 V6Halogen-Free caBGA400COM
LCMXO3LF-6900C-5BG40069002.5V/3.3 V5Halogen-Free caBGA400IND
LCMXO3LF-6900C-6BG4006902.5V/3.3 V6Halogen-Free caBGA400IND

Part NumbeLUTsSupply VoltageSpeedPackageLeadsTemp
CMXO3LF-9400E-5MG256C94001.2 V5Halogen-Free csfBGA256COM
CMXO3LF-9400E-6MG256C94001.2 V6Halogen-Free csfBGA256COM
LCMXO3LF-9400E-5MG256I9401.2 V5Halogen-Free csfBGA256IND
LCMXO3LF-9400E-6MG256I9401.2 V6Halogen-Free csfBGA256IND
CMXO3LF-9400E-5BG256C94001.2V5Halogen-Free caBGA256COM
CMXO3LF-9400E-6BG256C94001.2V6Halogen-Free caBGA256COM
LCMXO3LF-9400E-5BG256I94001.2V5Halogen-Free caBGA256IND
LCMXO3LF-9400E-6BG256I94001.2 V6Halogen-Free caBGA256IND
CMXO3LF-9400E-5BG400C94001.2 V5Halogen-Free caBGA400COM
CMXO3LF-9400E-6BG400C94001.2V6Halogen-Free caBGA400COM
CMXO3LF-9400E-5BG40094001.2 V5Halogen-Free caBGA400ND
CMXO3LF-9400E-6BG40094001.2V6Halogen-Free caBGA400IND
CMXO3LF-9400E-5BG484C94001.2 V5Halogen-Free caBGA484COM
CMXO3LF-9400E-6BG484C94001.2V6Halogen-Free caBGA484COM
CMXO3LF-9400E-5BG484I94001.2V5Halogen-Free caBGA484IND
LCMXO3LF-9400E-6BG484I9401.2 V6Halogen-Free caBGA484IND
CMXO3LF-9400C-5BG256C94002.5V/3.3V5Halogen-Free caBGA256COM
CMXO3LF-9400C-6BG256C9402.5V/3.3 V6Halogen-Free caBGA256COM
CMXO3LF-9400C-5BG256I94002.5V/3.3 V5Halogen-Free caBGA256IND
LCMXO3LF-9400C-6BG256I94002.5V/3.3 V6Halogen-Free caBGA256IND
LCMXO3LF-9400C-5BG400C94002.5V/3.3 V5Halogen-Free caBGA400COM
CMXO3LF-9400C-6BG400C9402.5V/3.3V6Halogen-Free caBGA400COM
LCMXO3LF-9400C-5BG40094002.5V/3.3 V5Halogen-Free caBGA400IND
CMXO3LF-9400C-6BG40094002.5V/3.3 V6Halogen-Free caBGA400IND
CMXO3LF-9400C-5BG484C94002.5V/3.3V5Halogen-Free caBGA484COM
CMXO3LF-9400C-6BG484C9402.5V/3.3 V6Halogen-Free caBGA484COM

Part NumbeLUTsSupply VoltageSpeedPackageLeadsTemp
LCMXO3LF-9400C-5BG484I94002.5V/3.3V5Halogen-Free caBGA484IND
LCMXO3LF-9400C-68G484I94002.5 V/3.3 V6Halogen-Free caBGA484IND
6.3. MachXO3LF Ultra Low Power Automotive Grade Devices,Halogen Free
  (RoHS)Packaging
Part Number LUTsSupply Voltage5peedPackageLeadsTemp
LAMXO3LF-640E-5TG100E 6401.25Halogen-Free TQFP100AUTO
LAMXO3LF-640E-5MG132E 6401.25Halogen-Free csBGA132AUTO
LAMXO3LF-1300E-5TG100E 13001.25Halogen-Free TOFP100AUTO
LAMXO3LF-1300C-5TG100E 13003.35Halogen-Free TQFP100AUTO
LAMXO3LF-1300E-5MG132E 13001.25Halogen-Free csBGA132AUTO
LAMXO3LF-1300C-5MG132E 13003.35Halogen-Free csBGA132AUTO
LAMXO3LF-1300E-5BG256E 13001.25Halogen-Free caBGA256AUTO
LAMXO3LF-1300C-58G256E 13003.35Halogen-Free caBGA256AUTO
LAMXO3LF-2100E-5TG100E 21001.25Halogen-Free TQFP100AUTO
LAMXO3LF-2100C-5TG100E 21003.35Halogen-Free TOFP100AUTO
LAMXO3LF-2100E-5MG132E 21001.25Halogen-Free csBGA132AUTO
LAMXO3LF-2100C-5MG132E 21003.35Halogen-Free csBGA132AUTO
LAMXO3LF-2100E-5BG256E 21001.25Halogen-Free caBGA256AUTO
LAMXO3LF-2100C-5BG256E 21003.35Halogen-Free caBGA256AUTO
LAMXO3LF-2100E-58G324E 21001.25Halogen-Free caBGA324AUTO
LAMXO3LF-2100C-58G324E 21003.35Halogen-Free caBGA324AUTO
LAMXO3LF-4300E-5MG132E 43001.25Halogen-Free csBGA132AUTO
LAMXO3LF-4300C-5MG132E 43003.35Halogen-Free csBGA132AUTO
LAMXO3LF-4300E-5BG256E 43001.25Halogen-Free caBGA256AUTO
LAMXO3LF-4300C-58G256E 43003.35Halogen-Free caBGA256AUTO
LAMXO3LF-4300E-58G324E 43001.25Halogen-Free caBGA324AUTO
LAMXO3LF-4300C-58G324E 43003.35Halogen-Free caBGA324AUTO


示例解决方案


控制PLD

  • 非易失性PLD（640至9400 LUT和28至384 I/O）在服务器、通信盒和工业控制器中提供最广泛的应用覆盖。

  • 通过将硬件管理功能（如电源热管理和控制PLD）集成到MachXO3和L-ASC10中，降低成本和BOM。

  • 在系统内添加功能并修复错误，而不会通过无中断 I/O 中断系统运行。

  • 通过使用 Reveal 进行片上调试，更快地完成电路板调试。


带MachXO3的电机控制接口

  • 灵活地与工业、汽车和其他嵌入式系统中使用的各种电机连接

  • IGBT保护和SPI接口允许向MCU提供实时反馈

  • 灵活地支持不同的通信标准，功耗低，响应速度快

  • 占地面积小，适合空间受限的应用


使用MachXO3进行电池管理控制

  • MachXO3为移动和便携式嵌入式系统的电池管理提供控制器

  • 智能电池平衡，用于每个电池单元的电荷均衡。

  • 控制充电/放电过程并接收实时电池信息，如充电状态 （SOC） 和健康状态 （SOH）


微处理器接口扩展

  • 通过向低成本微控制器添加GPIO来节省成本

  • 为系统控制处理器添加额外的 SPI 和 I2C 接口

  • 轻松执行电压电平转换

  • 通过PLD实现系统状态寄存器简化系统管理


CSI-2 图像传感器接口

  • 支持 CSI-2 高速差分信号

    • Rx 和 Tx 接口

  • 从 1-4 个 CSI-2 通道，速率高达 900 Mbps

  • 可在 49 wlcsp （3.2 x 3.2 mm） 中实现

  • 支持 RAW、YUV 或 RGB


DSI LCD显示器接口

  • 支持 DSI 发送信令

    • HS（高速）模式传输

    • LP（低功耗）模式发送和接收

  • 可在 49 wlcsp （3.2 x 3.2 mm） 中实现

  • 支持 DSI 格式 RGB、YCbCr 和用户定义

  • 输入总线也可以是 DSI，以启用 LCD 屏幕更换


上一个: FPGA现场可编程门阵列LCMXO3D-9400ZC-2BG256C

下一个: 电源控制器和监视器L-ASC10-1SG48I

推荐产品

在线留言

在线留言
